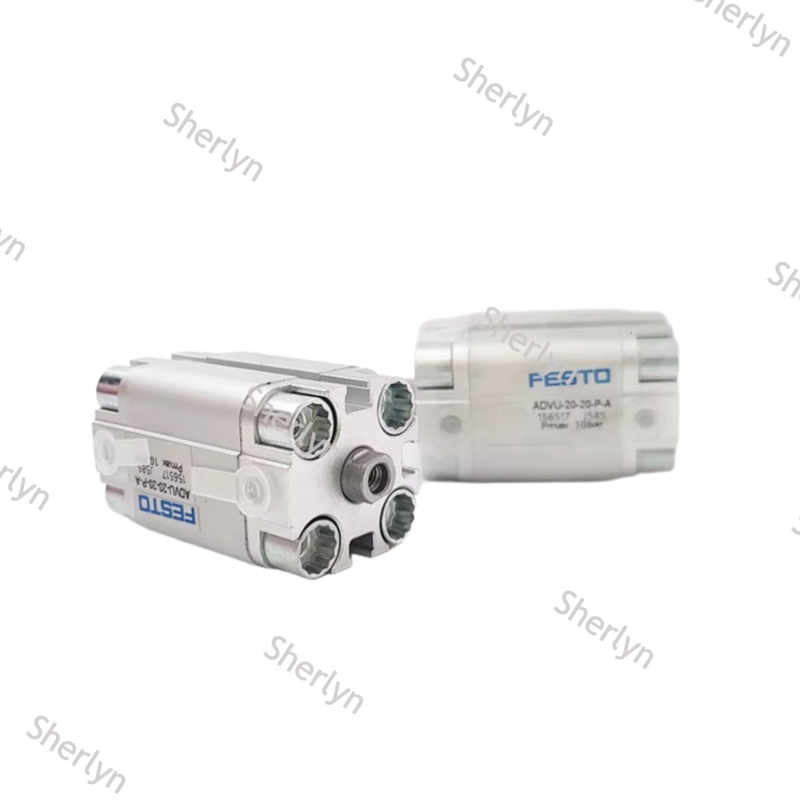

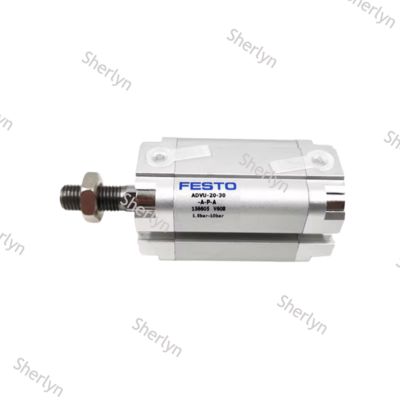

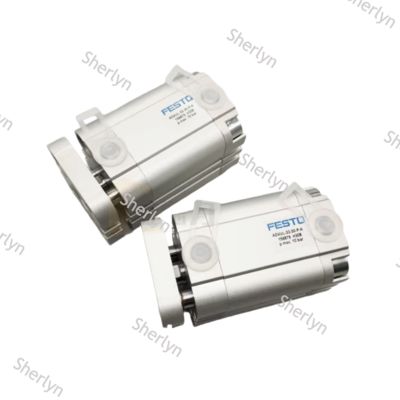

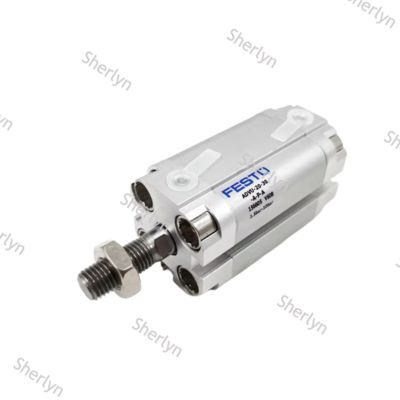

ADVU-12-10-A-P-A 156587 Festo Cylinder Piston Rod With External Thread

Product Description:

The ADVU series is a compact short stroke cylinder launched by Festo, covering various working forms such as double acting (ADVU) and single acting (AEVU, AEVUZ).

Double acting cylinder (ADVU): controls the extension and retraction of the piston rod through compressed air. The piston diameter range is from 12 mm to 125 mm, with a wide stroke range. The standard stroke is 5 to 80 mm, and some models can choose a stroke range of 1 to 400 mm.

Single acting cylinder: including push type (AEVU) and pull type (AEVUZ). The piston diameter is 12 to 100 mm, and the stroke is usually 5 to 25 mm or 1 to 25 mm.

Compact structure and standardization: The ADVU series cylinders have a simple appearance, smooth surface, and compact structure. Some models comply with international standards such as ISO 6432 (such as ADVU-32-10-P-A) or VDMA, and have good interchangeability and compatibility.

Buffer and sensing functions:

• Buffer design: The cylinder is usually equipped with elastic buffer rings or pads (often labeled as "P" in the model) at both ends, which can effectively absorb the energy of motion impact, reduce vibration and noise, and extend the service life.
• Position sensing: Many models support non-contact position sensing (often labeled as "A" in the model), which facilitates the installation of proximity sensors (such as inductive sensors SM... -8) to achieve precise detection and control of piston position.

Applications:

The Festo ADVU series cylinders have a wide range of applications in various fields due to their compact structure, reliable performance, and flexible configurability:

1. General automation equipment: widely used in various automation control systems and pneumatic equipment.

2. Automotive manufacturing and assembly: used for clamping and positioning in welding, handling, pressing, and other processes (such as the example model ADVU-32-10-P-A used for positioning).

3. In the electronics and semiconductor industry, where high cleanliness and precision are required for chip grinding, spot welding machines (such as the example model ADVU-32-40-P-A used for spot welding machines), circuit board assembly, etc., its compact design and optional stainless steel material can meet the needs.

4. Food and beverage packaging machinery: commonly used for pushing, measuring, and packaging actions in filling lines, packing machines, labeling machines (such as the example model ADVU-32-10-P-A used for labeling), and other equipment.

5. Medical and laboratory equipment: Its compactness and reliability are also suitable for fields that require precise control, such as medical equipment and the biotechnology industry (such as the example model ADVU-20-15-P-A applied in the medical and health field).

6. Other industrial fields: also applied in many fields such as metal processing (such as stamping), printing equipment, material handling, etc.
