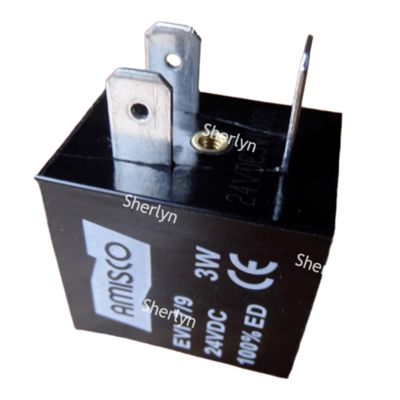

AMISCO EVI 7-9 Coil DC24V 3W

Product Description:

The Amisco EVI 7/9 series coil is a compact 22mm electromagnetic coil specifically designed for driving pilot valves in industrial environments. It boasts high-performance materials and a robust structural design.

Core structure and material:

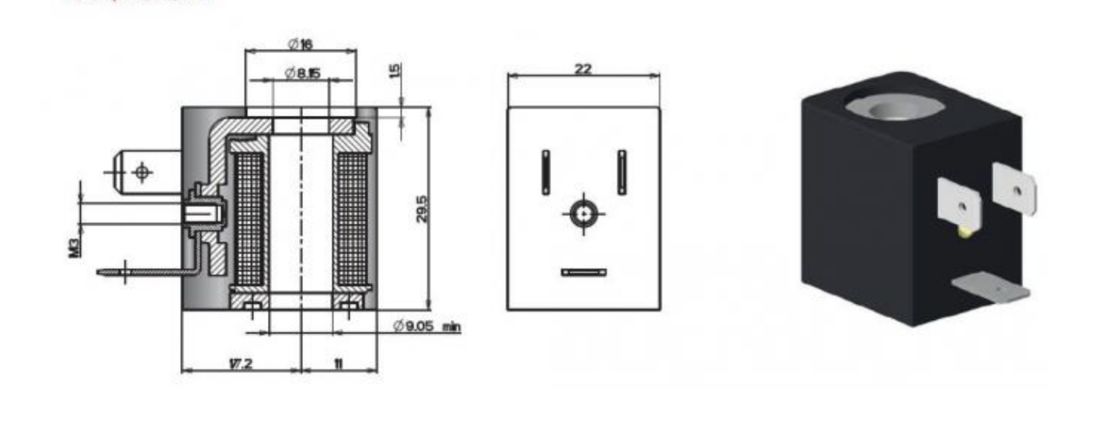

The coil features a PBT plastic skeleton that is highly heat-resistant and filled with 30% glass fiber, ensuring mechanical strength and high-temperature resistance. Internally, it uses H-grade heat-resistant enameled wire compliant with the IEC 60317-13 standard (temperature resistance of 200 ℃) for winding. Additionally, a magnetic metal frame (yoke) made of low-carbon steel forms an effective magnetic circuit. The coil is encapsulated with a special glass fiber reinforced nylon material, providing integrity and protection.

Electrical characteristics and protection:

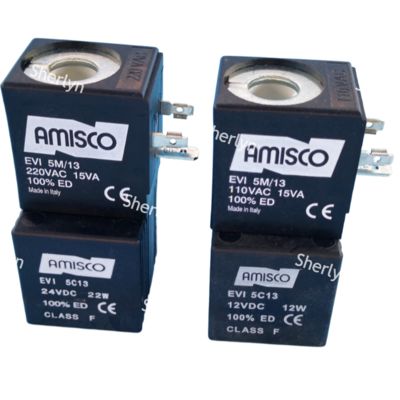

This coil series offers a wide range of voltage options, including DC12V, DC24V, AC24V, AC110V, AC220V, and AC380V. It achieves a high protection level of IP65 (with a junction box or corresponding connector), effectively preventing dust intrusion and water jets from any direction. It is suitable for use in harsh, dusty, and humid industrial environments. With a heat resistance level reaching F, it ensures reliable operation at higher ambient temperatures and typically complies with CE standards.

Applications:

The Amisco EVI 7/9 series coils, known for their reliability, serve primarily as control components for pilot-operated solenoid valves and find broad applications in pneumatic systems across various industrial automation fields.

Industrial pneumatic systems are the primary domain for EVI 7/9 coils, used extensively to govern directional control valves that operate pneumatic actuators like cylinders and pneumatic motors. This facilitates changes in gas direction and control, making it a ubiquitous component in automation equipment, robotic arms, assembly lines, among others.

EVI 7/9 coils are integral to a wide array of industrial equipment where pneumatic systems are utilized for control purposes.

• Metallurgy and Manufacturing: For instance, in the burner control systems of sheet metal heat treatment furnaces, electromagnetic valves are employed to regulate gas or air pipelines.
• Environmental dust removal: They play a crucial role in dust removal equipment, such as steel mill dust collectors, to manage the electromagnetic valve for pulse jet cleaning.
• Fluid control: These coils act as driving components for solenoid valves in hydraulic systems, refrigeration systems, gas control systems, and fuel burners.

Moreover, these coils have applications in various other fields like office equipment, including timers, sensors, and even printers.

Support and Services:

Norgren offers comprehensive product technical support and services for its Solenoid Valve product. Our team of experts is available to assist with any questions or issues you may encounter with the product. We provide troubleshooting guidance, product documentation, and assistance with installation and maintenance.

Packing and Shipping:

Product Packaging:

The Norgren Solenoid Valve is carefully packaged in a sturdy cardboard box to ensure safe delivery. The valve is protected with foam padding to prevent any damage during transit.

Shipping:

We offer fast and reliable shipping options for the Norgren Solenoid Valve. Orders are typically processed within 1-2 business days and shipped using trusted carriers to ensure timely delivery to your door.
