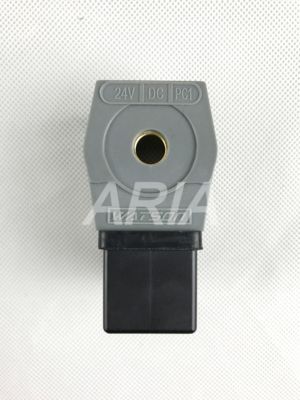

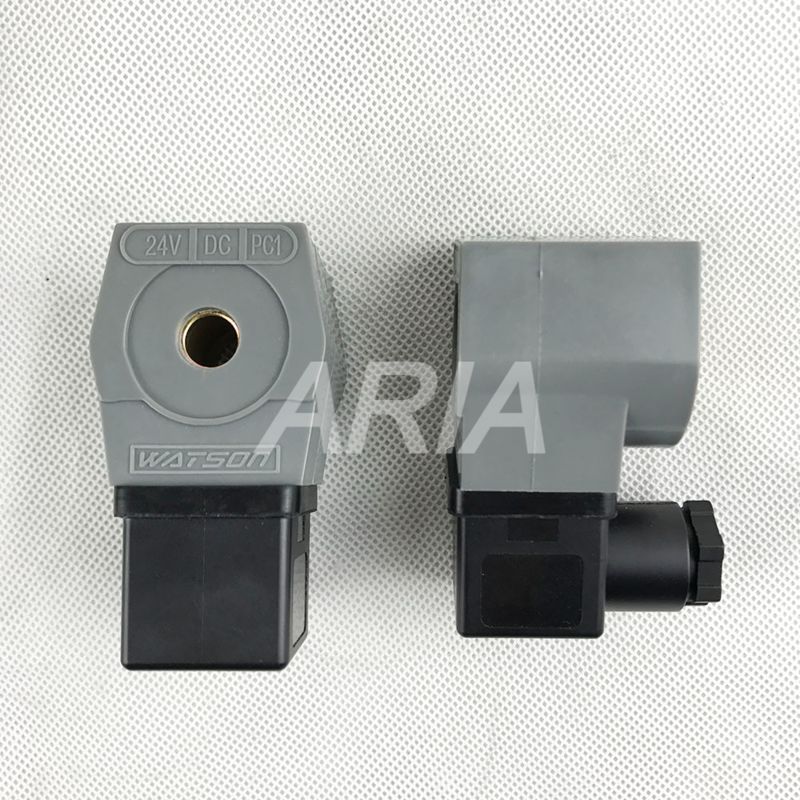

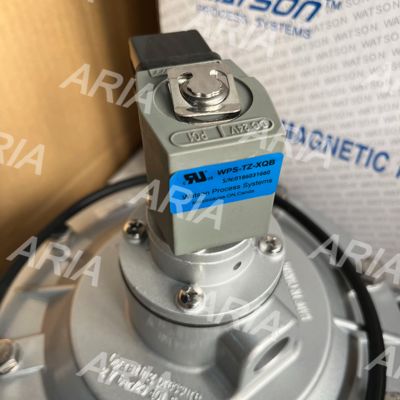

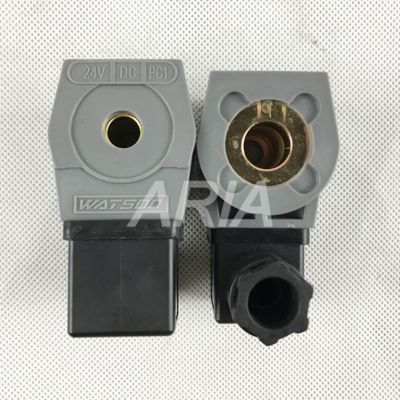

WATSON WPS-TZ-XQB Electromagnetic Pulse Valve Coil With Pilot Head Clamp Spring Wave Pad PC1 Coil

Product Description:

Connection Specification: The device features a 3-inch submerged design, suitable for installation inside air receivers (air tanks).

Operating Pressure Range: The operating pressure typically ranges from 1.5 bar to 8 bar.

Operating Temperature:

• Standard version: Suitable for an ambient temperature of -40°C to +100°C.
• High-temperature version: Operable in an environment of -20°C to +200°C.

Protection Class: Achieves IP65, providing dust resistance and protection against water spray from certain directions.

Weight: Approximately 11 kg.

Technical Principle: Adopts pulse electromagnet technology. Through the rapid attraction and release of the pulse electromagnet, high-speed pulsed airflow is generated, enabling rapid on-off control of fluid and regulation of flow direction.

Material Composition:

• The 3/4-inch upper cover is generally made of die-cast aluminum.
• The 3-inch submerged valve body is also constructed from die-cast aluminum.
• The diaphragm is usually made of materials such as TPE (Thermoplastic Elastomer) (selected based on specific working conditions).

Key Technical Terminology Supplementary Explanation:

• Submerged Pulse Valve: A specialized pulse valve installed inside the air receiver (instead of being mounted externally). It directly releases pulsed air into the filter bag area, reducing airflow resistance and improving dust-cleaning efficiency, which is widely used in large-scale baghouse dust collectors.
• Die-Cast Aluminum: A metal processing material formed by injecting molten aluminum into a mold under pressure. It has the advantages of high structural strength, good dimensional accuracy, and lightweight, making it suitable for manufacturing valve bodies and covers that require both pressure resistance and portability.
• TPE (Thermoplastic Elastomer): A flexible material combining the elasticity of rubber and the processability of plastic. It exhibits excellent wear resistance, aging resistance, and temperature adaptability, making it a common choice for pulse valve diaphragms (especially in medium-temperature working conditions).
• Air Receiver (Air Tank): A pressure vessel in the dust collector system used to store compressed air. Installing the submerged pulse valve inside it ensures stable air pressure during the pulse blowing process, avoiding pressure fluctuations that affect cleaning performance.

Technical Parameters:

Applications:

For users looking for high-quality Right angle pulse valves, the WATSON WPS-CA/TG76 model is an excellent choice. With CE certification, this Electromagnetic pulse valve is suitable for a wide range of applications.

The WATSON Pulse Jet Valves are versatile and can be used in various scenarios due to their reliable performance and durability. They are ideal for industries requiring precise control of air flow, such as manufacturing plants, power generation facilities, and dust collection systems.

Whether you need to control air flow in a pneumatic system or regulate airflow in a specific temperature range (-25 to +80℃), the WATSON WPS-CA/TG76 pulse valve is a dependable solution. Its 3'' Inch port size allows for efficient air flow, making it suitable for medium to large-scale operations.

Customers can order the WATSON pulse valves with a minimum order quantity of 1, and the price is open for negotiation. The packaging details can be customized to meet the clients' requirements, ensuring safe delivery.

With a delivery time of 1-7 work days after payment, customers can quickly receive their orders. The payment terms include T/T, Western Union, and Paypal, providing flexibility for different payment methods.

WATSON guarantees a monthly supply ability of 5000 pieces, ensuring that customers can meet their operational needs without delay. The pneumatic power of the pulse valves ensures reliable and efficient performance in air-based systems.

Packing and Shipping:

Product Packaging:

The Pulse Jet Valves are carefully packaged in sturdy cardboard boxes to ensure safe transportation and delivery. Each valve is securely cushioned with foam inserts to prevent damage during handling and transit.

Shipping Information:

We offer fast and reliable shipping services for our Pulse Jet Valves product. Orders are processed promptly and shipped using trusted carriers to ensure timely delivery to our customers. Tracking information will be provided so you can monitor the status of your shipment.
