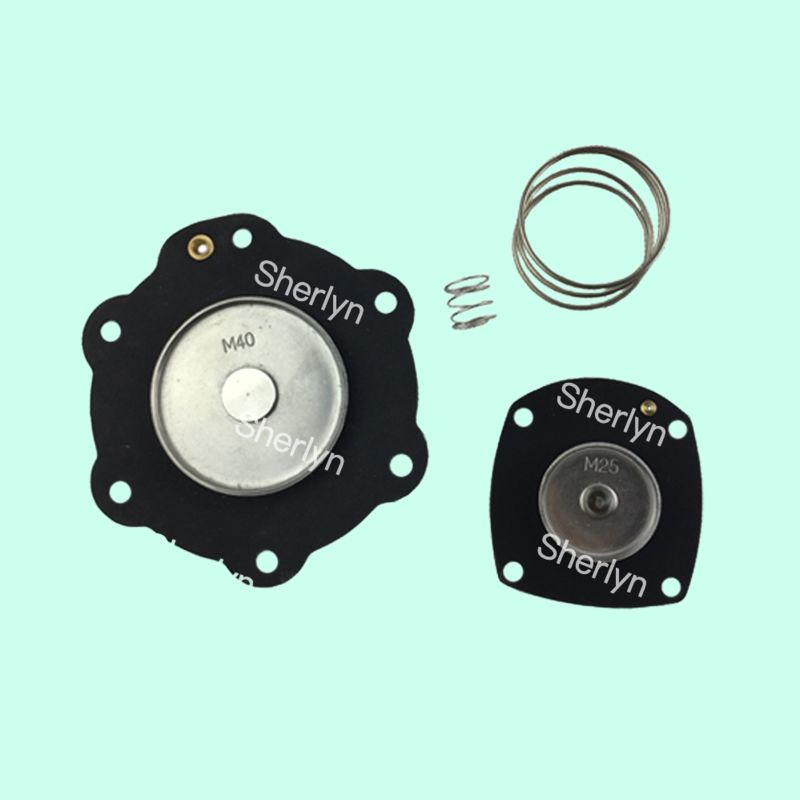

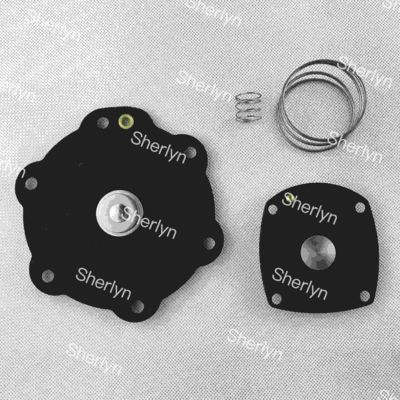

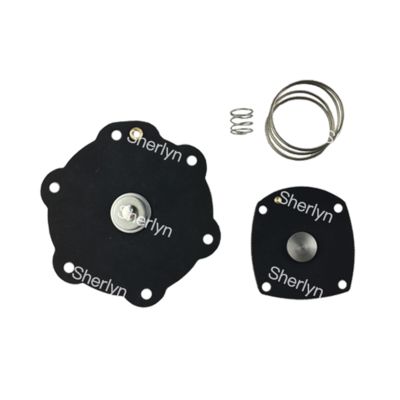

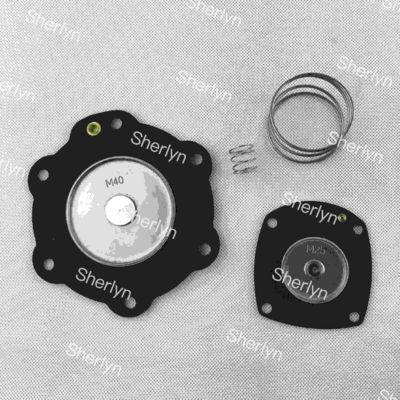

Product Description:
The diaphragm stands out as the most crucial component of the pulse valve. Its significance lies in the rapid response it initiates upon energization. At this point, the air trapped above the pulse valve diaphragm rapidly dispels, prompting the main diaphragm valve to swiftly open. Upon de-energization of the pulse valve, the air is released through the bleed hole of the main pulse valve. This action serves to equalize the diaphragm pressure, promptly resulting in the closure of the pulse valve.
Here are some options for customization to suit your needs:
1. Diaphragm Material: TPE, NBR, EPDM, FKM
2. Seat Material: Nylon, Rubber, PTFE
3. Diaphragm Color: Black, White, Red, Green, etc
4. Diaphragm Size: We can make it as same as your drawing
5. Packaging: We can provide you custom plastic bag with low MOQ
Applications:
Baghouse Pulse Jet System
The M/D series diaphragms (such as M/D25 type) act as the core sealing and actuating components of the pulse valve in the baghouse. They control the instantaneous release of compressed air to perform high-frequency jetting (several times per second) to clean the surface area of filter bags from dust accumulation.
Workflow: Electrical signal triggers the pulse valve → Diaphragm opens instantly → Compressed air is injected into filter bags via blowing pipes → Filter bags expand and shake off dust → Diaphragm resets and closes.
Valve Compatibility:
-
Autel AE1825B, AE2825B, AE1825R, etc., for 1-inch pulse valves
-
MD series pulse valves (e.g., MD120, MD125, MD140S) suitable for valve sizes ranging from 20mm to 76mm
Powder Conveying and Silo Arch Breaking
This system is used for pneumatic conveying pipeline cleaning or breaking material bridges in silos. It utilizes pulsating airflows to prevent blockages and is suitable for scenarios involving coal powder, grains, plastic granules, and more.
Industry Applications and Membrane Compatibility
|
Industry
|
Application
|
Compatible Diaphragm Models
|
Key Requirements
|
|
Manufacture of Cement
|
Kiln-end dust collector, raw material grinding dust removal
|
M/D25, MD140S
|
Tolerant to typical dust temperatures (<80℃)
|
|
Steel Smelting
|
Sintering machine head dust removal, blast furnace gas purification
|
MD150S, MD162S
|
Requires cooler integration (temperature ≤60℃)
|
|
Wood Processing
|
Sawdust collection system
|
MD125
|
Explosion-proof design
|
|
Food/Chemical Industry
|
Powder pneumatic conveyance for blockage clearance
|
M/D25 (TPE material)
|
Oil-free dry air requirement (FDA compatibility)
|
|
Waste Incineration
|
Flue gas treatment system
|
Requires EPDM/FKM diaphragms
|
Corrosion-resistant (acidic gases)
|
Support and Services:
The Product Technical Support and Services for the Pulse Valve Diaphragm include troubleshooting assistance, installation guidance, and maintenance recommendations. Our team of experts is dedicated to ensuring optimal performance and reliability of the product. Additionally, we offer training programs and resources to help customers effectively use and maintain the pulse valve diaphragm.
Packing and Shipping:
Product Name: Pulse Valve Diaphragm
Description: High-quality diaphragm for pulse valves, made of durable materials for long-lasting performance.
Packaging: Each diaphragm is individually wrapped in protective packaging to prevent damage during transit.
Shipping: We ship all orders within 1-2 business days via reliable courier services to ensure safe and timely delivery to your location.
