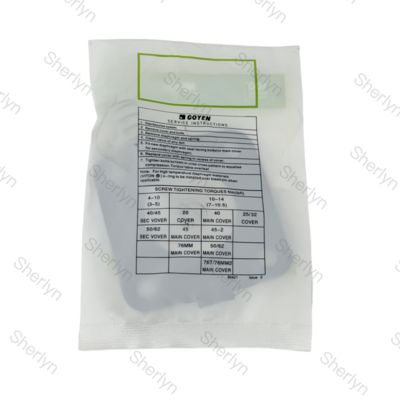

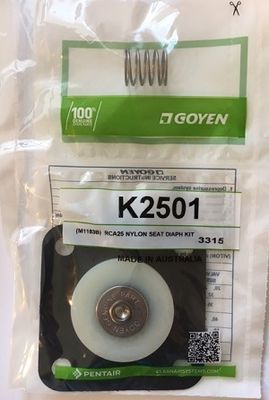

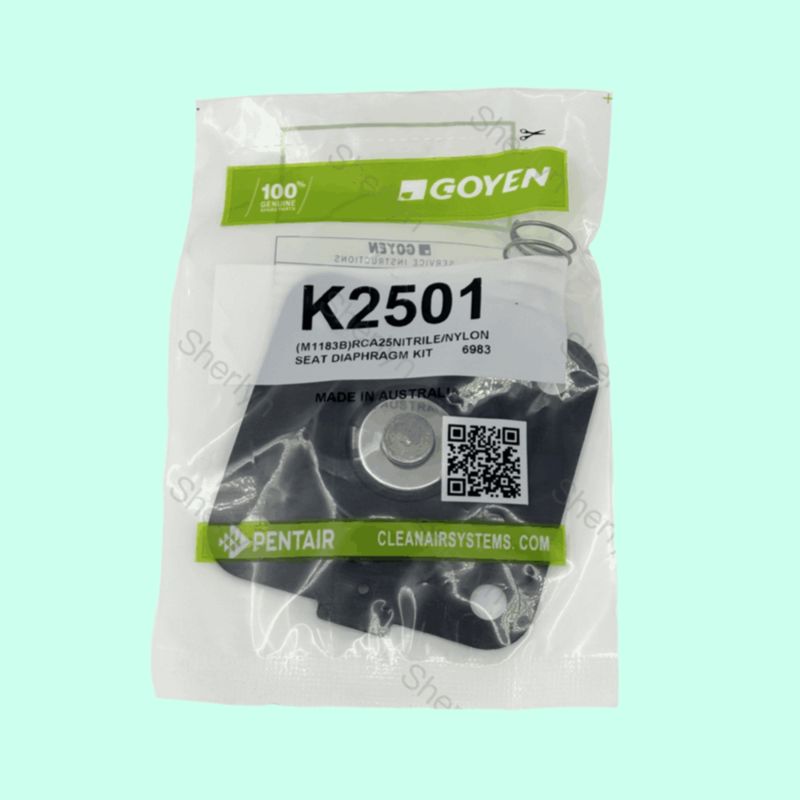

K2500 K2501 1 '' Nitrile Rubber Diaphragm Repair Kit for CA25T CA25DD Goyen Pulse Valve

Product Description:

K2501 (M1183B), K2502 (M736), K2503 (M1887) Diaphragm (Membrane) for Goyen pulse valve CA25T, RCA25T, CA25DD, RCA25DD, CAC25FS, RCAC25FS, CA25MM, RCA25MM; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse Jet Valve is a solenoid pilot operated diaphragm valve specially designed to deliver extremely fast pulsing in reverse-jet dust collector systems. With its high flow rates, higher peak pressure and the fastest response times on the market it delivers optimal filter cleaning performance, while using significantly less air. This results in energy savings for the user.

Applications:

The industrial dust removal system includes a bag/filter cartridge dust collector with pulse cleaning capabilities. It is highly effective in applications such as cement plant kiln tail dust removal and steel plant blast furnace dust removal.

Each valve in the system can control 20-50 filter bags, and the membrane operates at a high frequency of at least once per minute, ensuring efficient dust removal.

The system is equipped to handle high temperature and corrosive gases, such as waste incineration flue gas. It utilizes FKM film that is resistant to temperatures up to 200°C.

In situations involving acidic and alkaline waste gases from chemical plants, the system utilizes an EPDM membrane that is resistant to corrosion within a pH range of 3-11.

In special environments like the food and pharmaceutical industry, the system features an EPDM food-grade film that is designed to resist pollution, ensuring the purity of the processed products.

The system can operate under strict physical conditions, including high-pressure impact scenarios utilizing a CA62T/CA76T double diaphragm structure with a pressure rating of 0.85MPa.

It is also suitable for use in high humidity environments where anti-condensation measures are required, such as in cement raw material grinding and dust removal processes.

Ordering Number of Diaphragm For Goyen Pulse Valve:

Support and Services:

Our Product Technical Support and Services for the Pulse Valve Diaphragm include:

- Comprehensive troubleshooting assistance for any technical issues

- Guidance on installation and maintenance procedures

- Product training and tutorials for optimal performance

- Access to documentation and resources for product information

- Warranty support and replacement services as needed

Packing and Shipping:

Product Packaging:

The Pulse Valve Diaphragm is carefully packaged in a sturdy cardboard box to ensure safe delivery. Each diaphragm is placed in a protective plastic cover to prevent any damage during transportation.

Shipping:

Orders for the Pulse Valve Diaphragm are typically shipped within 1-2 business days after payment confirmation. We use reliable shipping services to deliver the product to your doorstep in a timely manner. You will receive a tracking number to monitor the status of your shipment.
