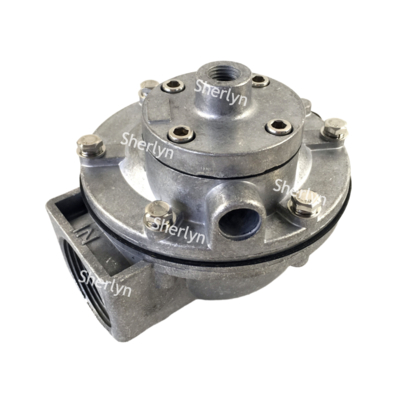

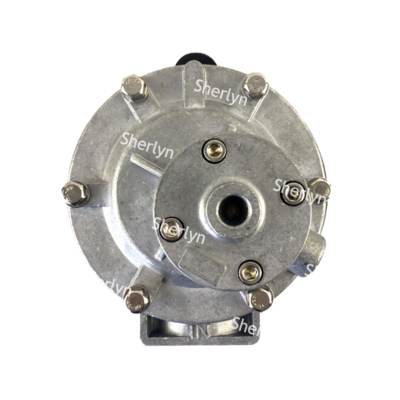

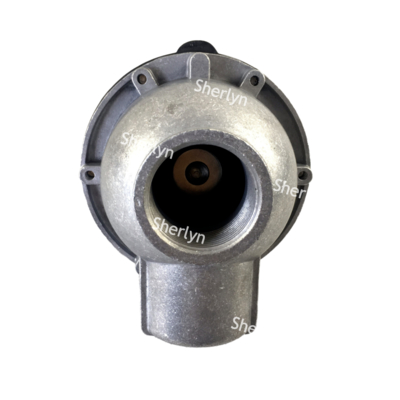

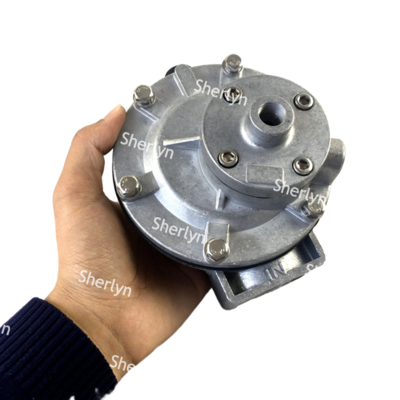

GOYEN RCA45T 1 1/2'' Electromagnetic Pulse Valve 1.5-inch Right Angle Type Suitable Diaphragm K4502 K4503

GOYEN RCA45T 1 1/2'' Electromagnetic Pulse Valve 1.5-inch Right Angle Type Suitable Diaphragm K4502 K4503

  • GOYEN RCA45T 1 1/2'' Electromagnetic Pulse Valve 1.5-inch Right Angle Type Suitable Diaphragm K4502 K4503
  • GOYEN RCA45T 1 1/2'' Electromagnetic Pulse Valve 1.5-inch Right Angle Type Suitable Diaphragm K4502 K4503
  • GOYEN RCA45T 1 1/2'' Electromagnetic Pulse Valve 1.5-inch Right Angle Type Suitable Diaphragm K4502 K4503
  • GOYEN RCA45T 1 1/2'' Electromagnetic Pulse Valve 1.5-inch Right Angle Type Suitable Diaphragm K4502 K4503
  • GOYEN RCA45T 1 1/2'' Electromagnetic Pulse Valve 1.5-inch Right Angle Type Suitable Diaphragm K4502 K4503
  • GOYEN RCA45T 1 1/2'' Electromagnetic Pulse Valve 1.5-inch Right Angle Type Suitable Diaphragm K4502 K4503
GOYEN RCA45T 1 1/2'' Electromagnetic Pulse Valve 1.5-inch Right Angle Type Suitable Diaphragm K4502 K4503
Подробная информация о продукте:
Фирменное наименование: GOYEN
Сертификация: CE
Номер модели: RCA45T
Оплата и доставка Условия:
Minimum Order Quantity: 1
Цена: Подлежит обсуждению
Packaging Details: Carton /As The Clients Require
Delivery Time: 1-7Work Days After Payment
Условия оплаты: T/T, Western Union, PayPal
Supply Ability: 5000 Pieces/1Month
контакт
Подробное описание продукта
Материал диафрагмы: NBR, FKM Серия клапанов:: T Series
Диапазон рабочего давления: От 0,35 до 0,85 МПа Размер пилота: 1/8 '', 1/4 ''
Размер порта:: 1-1/2 '' Структура клапана: Правый угол, резьбовой порт
Выделить:

1.5-inch electromagnetic pulse valve

,

right angle pulse jet valve

,

diaphragm pulse valve with warranty

Product Description:

Pulse Jet valve is a type of valve that converts a continuous input signal into a pulsed signal by utilizing the delay caused by gas passing through gas resistance and gas capacity.

The internal design of the air inlet in the right angle pulse jet valve, along with the installation and application of the positioning steel ring, helps to prevent loosening from inertial impact and ensures precise installation positioning simultaneously.

Even after extensive usage, the stainless steel nut remains effective in facilitating easy disassembly and reassembly.


Applications:

Bag filter pulse cleaning system

Function: Control the instantaneous injection of compressed air into the filter bag to remove surface dust.

Applicable equipment:

  • Cement plant rotary kiln dust collector
  • Steel plant blast furnace gas purification system
  • Bag dust removal device for coal-fired power plants
  • Dust collection system for chemical/pharmaceutical industry
  • Material conveying and pneumatic conveying system
  • Used for pulse airflow dredging when pipelines are blocked (such as grain and fly ash conveying pipelines).

GOYEN RCA45T 1 1/2'' Electromagnetic Pulse Valve 1.5-inch Right Angle Type Suitable Diaphragm K4502 K4503 0

GOYEN RCA45T 1 1/2'' Electromagnetic Pulse Valve 1.5-inch Right Angle Type Suitable Diaphragm K4502 K4503 1

GOYEN RCA45T 1 1/2'' Electromagnetic Pulse Valve 1.5-inch Right Angle Type Suitable Diaphragm K4502 K4503 2

GOYEN RCA45T 1 1/2'' Electromagnetic Pulse Valve 1.5-inch Right Angle Type Suitable Diaphragm K4502 K4503 3

1 1/2'' RCA45T Goyen Type Remote Pilot Pulse Jet Valve For Dust Collector


Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the Pulse Controller. Pulse Jet Valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.


Different pulse jet valve structure:

1. Threaded Type
2. Manifold Flat Mount Type
3. Dresser Nut Type
4. Straight Through Type
5. Flanged Type

GOYEN RCA45T 1 1/2'' Electromagnetic Pulse Valve 1.5-inch Right Angle Type Suitable Diaphragm K4502 K4503 4
Technical Data:
Model No RCA15T RCA20T RCA25T RCA35T RCA45T RCA50T RCA62T RCA76T
Orifice Size 15 20 25 35 45 50 62 76
(mm)
Port Size 1/2'' 3/4'' 1'' 1 1/2'' 1 1/2'' 2'' 2 1/2'' 3''
Pilot Size 1/8'', 1/4''
Diaphragm Number 1 2
Working pressure 5 to 125 psi
Diaphragm Material NBR, FKM
Body Material Aluminum (diecast)
Valve Structure Right Angle (Outlet is at 90° to Inlet)
GOYEN RCA45T 1 1/2'' Electromagnetic Pulse Valve 1.5-inch Right Angle Type Suitable Diaphragm K4502 K4503 5

Support and Services:

Our Product Technical Support and Services for the Pulse Jet Valves include:

- Assistance with installation and setup

- Troubleshooting and diagnosis of issues

- Maintenance recommendations and schedules

- Repair and replacement services

- Training and educational resources for optimal operation


Packing and Shipping:

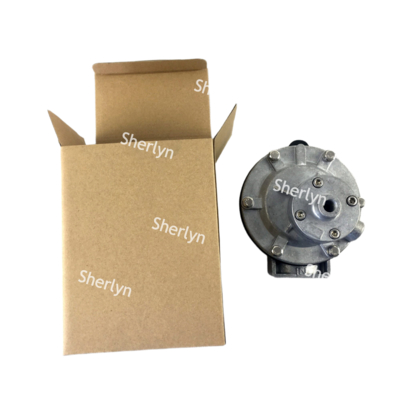

Product Packaging:

The Pulse Jet Valves are securely packaged in strong cardboard boxes to ensure safe delivery. Each valve is individually wrapped in protective material to prevent any damage during transportation.

Shipping Information:

We offer worldwide shipping for the Pulse Jet Valves. Orders are processed within 1-2 business days and shipped using reliable courier services. Customers will receive a tracking number to monitor the delivery status of their order.
