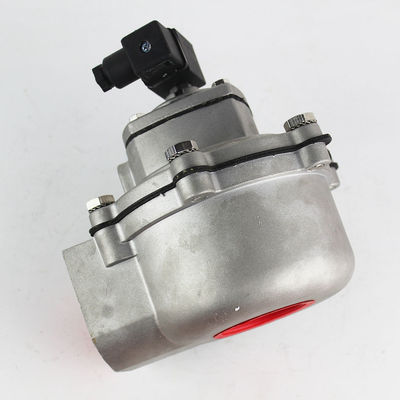

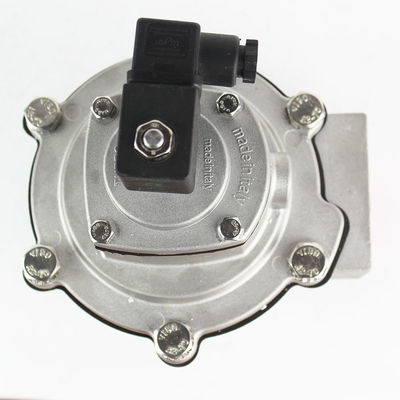

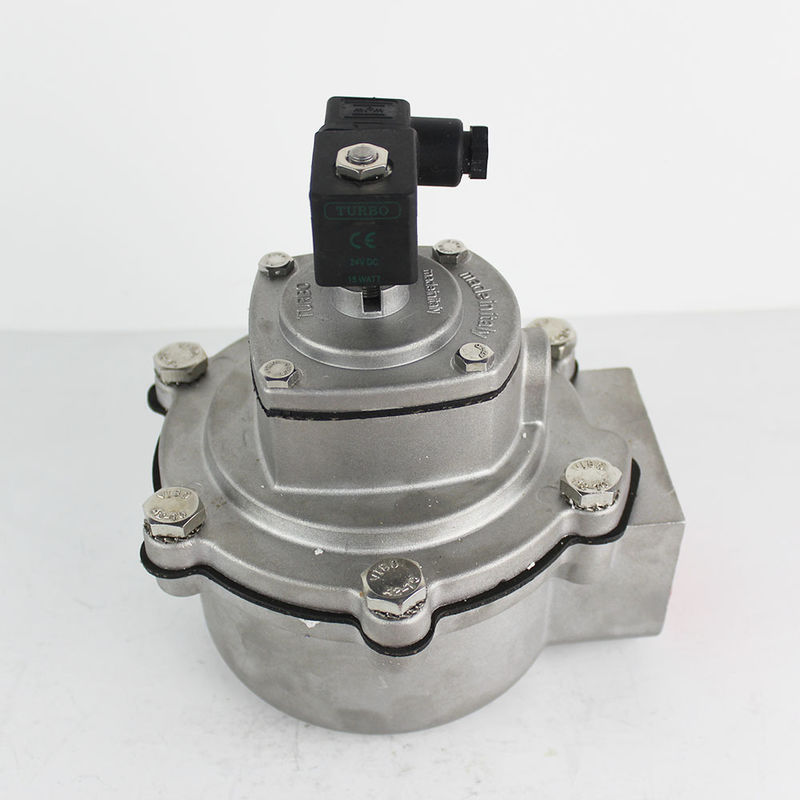

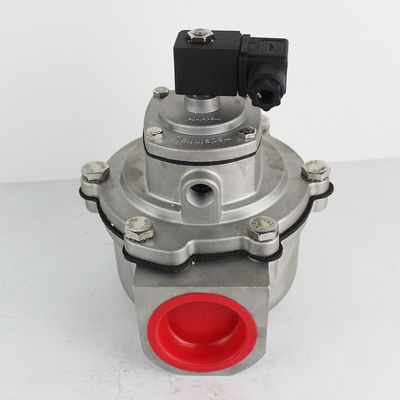

FP50 SQP50 SQM60 Turbo M50 2-inch Right Angle Electromagnetic Pulse Valve TURBO

Product Description:

Operating Principle:

Based on pulse jet technology, it instantly releases compressed air through electromagnetic or pneumatic control to form high-speed pulse airflow, which cleans the filter bags/cartridges and removes attached dust.

Control Methods:

• Electromagnetic control: The valve port is quickly opened/closed by the solenoid valve receiving electrical signals, with a fast response speed (millisecond level).
• Pneumatic control: Driven by a pneumatic control valve, it is suitable for high-pressure and harsh environments (such as high-temperature and corrosive occasions).

Working Pressure:

Usually 0.4-0.7MPa (special models can adapt to higher pressures). Pressure stability directly affects the blowing force and ash cleaning effect.

Blowing Volume and Blowing Time:

Blowing volume: The amount of compressed air released in a single time (related to the valve port diameter and pressure), which needs to match the size of the filter bag/cartridge.

Blowing time: Generally 0.05-0.2 seconds, which can be adjusted through the control system. If it is too short, the ash cleaning will be incomplete; if it is too long, energy will be wasted.

Response Time:

The time from receiving the signal to fully opening is usually ≤50 milliseconds. A fast response can reduce compressed air loss and increase the ash cleaning frequency.

Interface Size:

The pipe diameters of the air inlet and air outlet (connected to the blowing pipe). Common specifications include DN20, DN25, DN32, etc. (or inch specifications 1/2", 3/4", etc.), which need to match the system pipeline.

Working Medium:

Dry and clean compressed air (oil content ≤0.5ppm, water content ≤-40℃ dew point) to avoid blockage or corrosion of the valve body by impurities.

Working Temperature:

Regular models: -10℃~60℃ (electromagnetically controlled).

High-temperature models: Can adapt to above 150℃ (need to use high-temperature resistant sealing materials and valve body materials).

Corrosion Resistance:

The valve body material can be cast iron, aluminum alloy (with surface anti-corrosion treatment), or stainless steel (304/316). Stainless steel models are suitable for humid and corrosive environments (such as chemical industry and waste incineration industries).

Protection Level:

The protection level of the electromagnetic coil part is usually IP65 (dust-proof and protected against low-pressure water spraying), and some models can reach IP67, adapting to working conditions with more dust.

Valve Body Structure:

It adopts a diaphragm structure (the core component is an elastic diaphragm). The valve port is opened/closed through the rapid deformation of the diaphragm, which has the characteristics of good sealing, low wear, and long service life.

Diaphragm Material:

Common materials are nitrile rubber (NBR, oil-resistant and wear-resistant) and fluororubber (FKM, high-temperature resistant and chemical corrosion resistant). The selection depends on the working medium and temperature.

Technical Parameters:

Pulse Valve Model : FP40

Applications:

TURBO Pulse Jet Valves are versatile products suitable for various applications and scenarios due to their high-quality design and efficient performance. These Right angle pulse valves are manufactured in China and come with the CE certification, ensuring reliability and compliance with international standards.

The TURBO Pulse Jet Valves are ideal for use in industries requiring air filtration and dust collection systems. The Diaphragm Valve design of these pulse valves makes them suitable for applications where precise control of air flow is essential.

These Pulse Jet Valves can be used in a wide range of industries such as cement production, power generation, food processing, and more. The durable valve body made of Die Cast Aluminum Alloy ensures longevity and resistance to corrosion, making them suitable for various environmental conditions.

The operating pressure range of 0.1~0.8MPa allows for flexibility in different systems, while the IP65 degree of protection ensures reliable performance even in challenging environments. The working medium for these pulse valves is Clean Air, making them suitable for use in air filtration systems.

With a minimum order quantity of 1, customers have the flexibility to purchase the required quantity based on their needs. The pricing for these Pulse Jet Valves is negotiable, and the packaging details can be customized according to the clients' requirements, whether it is carton packaging or other specified packaging.

Customers can expect a quick delivery of 1-7 work days after payment, allowing for efficient integration into their systems. The payment terms accepted include T/T, Western Union, and Paypal, providing convenience and flexibility for transactions.

With a supply ability of 5000 pieces per month, customers can rely on the availability of these high-quality Pulse Jet Valves for their continuous operations. The ambient temperature range of -30°C to +40°C further enhances the versatility of these valves for use in different climates and conditions.

Packing and Shipping:

Product Packaging:

The Pulse Jet Valves are carefully packaged to ensure safe delivery. Each valve is wrapped in protective material and placed in a sturdy box with cushioning to prevent any damage during transit.

Shipping:

Orders for Pulse Jet Valves are processed promptly. The valves are shipped via trusted carriers to ensure timely delivery. Customers will receive a tracking number to monitor the shipping status of their order.
